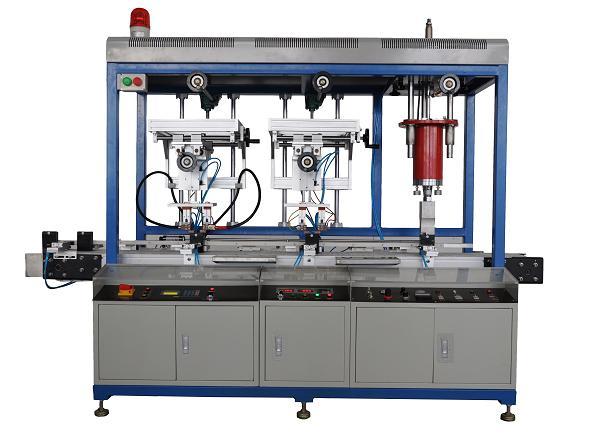

| name:Three Function Test Machine DRUM-2403 (Discharge/Internal Resistance/Ultrasonic) |
| Product information£º |
Search Guide: Battery test machine,Instant discharge test machine,Multi-function testing machine,
Large current discharge testing machine, Automatic battery testing machine, Battery tester, Multi-function
testing machine, Battery equipment
Application: This machine is dedicated to 24AH maintenance free battery finished testing. Due to welding the
cover sheet automatic discharge test, resistance test, complete the ultrasonic machine, thus greatly increases
the production efficiency and the pass rate,the actual reduction of 2 people,is the battery factory economic
and practical equipment.
Main Function:
1.Large current discharge test,the voltage drop value to determine the size of the battery capacity and
internal circuit, there is no weld. Detection of qualified automatic flow into the next process testing,testing
is not qualified automatic detection of conveyor belt.
2. Resistance test, resistance test to check the battery state of health and state of charge and connection
resistance parameters. Detection of qualified automatic flow into the next process of welding, testing is not
qualified automatic detection of conveyor belt.
3. Above test qualified battery, with ultrasonic welding of its cover with complete battery out.
4 Other, the machine has a front and back with the customer assembly line of the device, making the machine is
very convenient and user factory assembly line. |
|
| Product Parameter £º |
|
Model
|
DRUM-2403
|
High Current Discharge
|
Internal Resistance Test
|
Ultrasonic Weld
|
|
Input voltage
|
AC220V/50Hz
|
Discharge Current
|
0-200.0A
|
Test Range
|
0.0-200.0m¦¸
|
Ultrasonic
Output Power
|
1500W
|
|
Air Pressure
|
0.8MPa
|
Discharge Time
|
0-9S
|
Test Frequency
|
1000Hz
|
Ultrasonic
Output Frequency
|
15KHz
|
|
Belt Width
|
200mm
|
Discharge Voltage
|
6.0-12.0V
|
Test Current
|
10mA
|
Ultrasonic
Horn Trip
|
75mm
|
|
|
|
