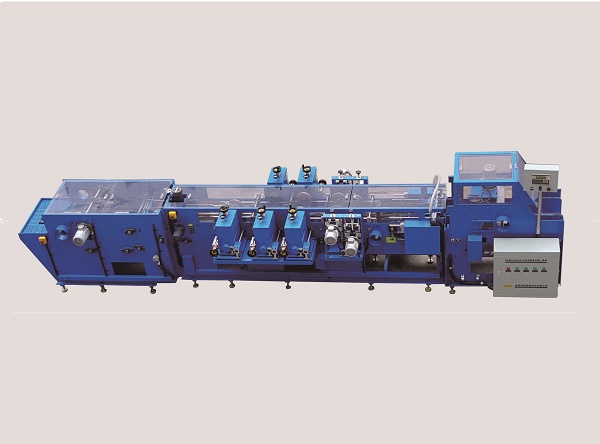

| name:Single/Double Plate Slitting And Brushing Machine |
| Product information： |
FUNCTION
Applied to the plate: with false pole ear plate total width of 380mm, and remove the false pole ear plate horizontal maximum size
330 (mm), the plate longitudinal largest size 160 (mm), thickness: 1.0 -5.0mm specific to provide the buyer with the drawings in
consultation.
System Features Remarks
1. The device uses the main roll forming roll saw slitting, high precision slitting, no waste generated.
2. Sucker material cutter adjustable spacing compatible slitting nine contiguous part of the plate.
3. Brush photoelectric machine to ensure the safety of equipment performance.
4, The chain support rails for the stainless steel, corrosion-resistant,
5. It has a sub-board automatic counting a set number of sub-board stacking conveyors, put two-piece, very ears slitting scrap
automatic transmission collection features.
6. PLC control, high reliability and ease of maintenance.
7. High speed about 60-100 panels per minute.
8. Dust can collect, no waste
Ⅱ、THE DEVICE BASICALLY COMPOSED
1, The device configuration Control cabinet, the material on the nose, vertical roll cut body,
transverse roll cut airframe, power plant, brushing nose roller cutting head, the receiving device, the
waste collection system.
2, The number of device configuration
(1) Control cabinet: 1.
(2) Feed material head: 1.
(3) The longitudinal roll cut body: 1.
(4) Side brushing head: 5
(5) Lug Brushing head: 2.
(6) Roll saw cutting head: 3.
(7) Plate rewinding device: 1.
3, Device configuration content
(1) Control cabinet: PLC, text display, solid state relays.
(2) On the material head: Rack, vacuum, power connection device, the sending device, sucker.
(3) Vertical roll cut body: channel steel, steel plate, stainless steel rails, brushing nose, cut off the
head, roller cutting head.
(4) The lateral roll cut body: channel steel, steel plate, stainless steel rails, roller cutting head.
(5) Power plant: steeples gear motor, carbon steel chain, guide device.
(6) Brushing nose: Import roll cutting machine for brushing round brush photoelectric machine.
(7) Roller cutting head: the precision alloy blades, high-precision transmission mechanism.
(8) The plate receipts device: counting sensors, conveyor belt and motor speed.
(9) The waste collection system: the sealing channel, the blade means or belt conveyor means or hopper
means, pumping dust inlet.
(10) Operating procedures: Artificial feeding →Brush Top And Bottom Side Plate → Brush both side plate
→ Brush plate lug →Slitting lug → Automatic pack output→Brushing the bottom side plate (count)
Ⅲ、EQUIPMENT SPECIFICATIONS INDEX REQUIREMENTS
1. Equipment Specifications Model: PCRM-020102
2. Fit plate model: Length 160-380mm;Width from 106-220mm;Thickness: 1.0-5.0 mm, specifically to provide
the buyer with the drawings in consultation.
3. Production Speed: ≥ 8 0 Panels / Min
4.The rejection rate:≤1.0%, the premise of the buyer to provide the plates of the deformation is not
greater than 0.5mm.
5. Cutter specifications: Φ 150.3XΦ50.83X5.0 (mm ) 。 ).
6. The main chain Specifications: Pitch 25.4X17.
7. External pumping dust interface size: Φ148 mm.
8. The main motor specifications: gear motor power 2.2KW deceleration 1/30.
9. Power supply and power: AC380-415V ± 10%, 50Hz, 8kw
10. Negative pressure parameters: maximum flow rate of 250m³/ h vacuum (≤ 100KPa)
12 .Weight: ≤3.0 T
13. Equipment Dimensions (L x W x H mm): 6100 x1300 x1400mm
14. Device color: gray and black.
15. Working hours: 24 hours continuous work properly. |
|
